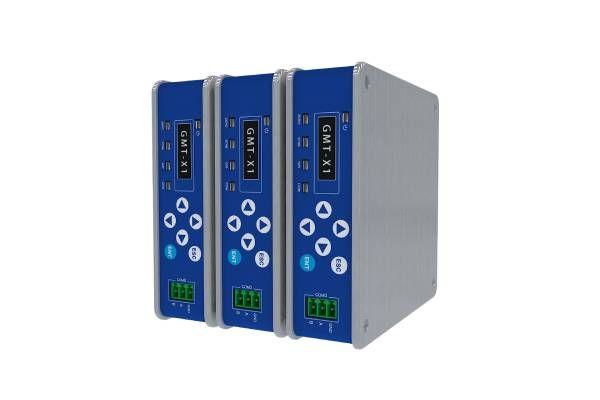

GMT-X1

GMT-X1, a DIN rail mounted weighing transmitter for industrial automation, can be used in various system weighing applications, such as weight checking, loss-in-weight, liquid filling, batching, vessel and silo weighing, etc. Through Bluetooth, it can be connected to Weasy App for cofiguration and monitoring.

• Stainless steel case with compact design
• Different configuration choice, a variety of combinations
• Standard: RS4851 + RS485/RS232(Selectable)

            Hardware Option1: 3 Input 5 Output or 3 Input 4 Output relay (Optional)

            Hardware Option2: RS485+16bit Analog or 2 Input 4 Output

            Hardware Option3: Modbus TCP or Ethernet/IP or Profinet

            (Hardware Option1,2,3 can be selected at the same time)

• Bluetooth Communication
• Calibration without weights (by loadcell sensitivity value )
• Printer function
• Self-testing for I/O and Communication port
• Self-editable boot screen
• Mobile App: connect with app through Bluetooth for setting the parameters and monitor indicator status
• Embedded web: connect with PC through Modbus TCP for setting the parameters and monitor indicator status
• Programmable I/O by PLC
