GM-9907

GM-9907

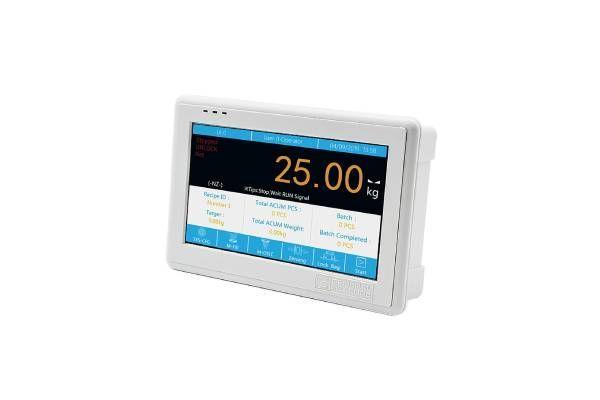

General-purpose Weighing Controller with Touch Screen

GM9907 is a general-purpose weighing controller series that is designed to control automatic packing machines. GM9907-LD with dual hoppers is for double scale packing machine. The brand new GM9907-L2 has 5 models to complete different functionality(with/without hopper, bulk scale, valve port, PLC). This series can be widely used in the industries of feed, grain, seed, and chemical and so on.

  • Bagging scale
  • Bulk scale
  • Loss-in-weight
  • Batching
  • 7-inch full color touch screen
  • Date/time-set function
  • Self-charging adaption
  • Support boot screen alteration and upgrade with USB
  • Two communication ports and Ethernet ports as standard connecting with computer or printer
  • 28 programmable input and output control ports (12 in and 16 out), which are customised
  • 40 recipes can be programmed and stored within controller for future choice and use.
  • Manual digital calibration and with reweighing function
  • Selectable A/D Converter 120/240/480/960 times/sec
  • Display accuracy up to 1/100,000
